FAIRINO FR10 collaborative robot
from €10,388 net, excl. VAT
Six-axis cobot with a 10 kg payload (max. 14 kg), 1400 mm reach and ±0.05 mm repeatability. Typical tasks: MIG/MAG and laser welding, CNC machine tending and palletizing.
Price: €10,388 (IP54) or €11,668 (IP65), net, excl. VAT. Prices for robots are the same across Europe.
Specifications
| FAIRINO FR10 | |
|---|---|
| Payload | 10 kg (max. 14 kg) |
| Reach | 1400 mm |
| Repeatability | ±0.05 mm |
| Axis 1: range, speed | ±175°, ±120°/s |
| Axis 2: range, speed | +85°/-265°, ±120°/s |
| Axis 3: range, speed | ±160°, ±180°/s |
| Axis 4: range, speed | +85°/-265°, ±180°/s |
| Axis 5: range, speed | ±175°, ±180°/s |
| Axis 6: range, speed | ±175°, ±180°/s |
| Typical TCP speed | 1.5 m/s |
| Robot weight | 40 kg |
| Protection rating | IP54 (IP65 version available) |
| I/O | DI ×16, DO ×16, AI ×2, AO ×2 |
| Communication | Modbus, Profinet, Ethernet, I/O |
| Programming | C#, C++, Python, Java, ROS |
| Operating temperature | 0–45 °C |
| Relative humidity | up to 90% RH |
| Mounting | any orientation |
| Materials | aluminium, steel |
| Price, IP54 | €10,388 (net, excl. VAT) |
| Price, IP65 | €11,668 (net, excl. VAT) |
Scope of delivery
Robot arm, control box, cabling and emergency stop button. The set is ready to start up and program out of the box.
Optional equipment: Smart Tool handle, 11" industrial tablet with wireless connection, mounting plate for a welding table.

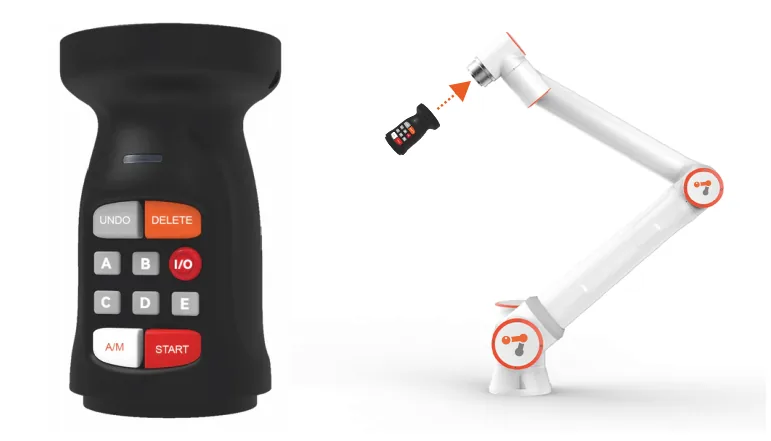

Smart Tool — teaching by guiding the arm
The Smart Tool is mounted between the last segment of the robot and the end effector. Its five programmable buttons (A–E) can be assigned functions such as saving a point (PTP, LIN), triggering an I/O, starting or stopping the program or ARC instructions. The operator guides the robot along the required path and records the sequence of points; the finished cycle can be saved and run immediately or edited in the WebApp interface. This shortens application set-up considerably — especially during tests, proofs of concept and changes on the line.
Typical applications
- Industry: assembly, packaging, tending production cells
- Logistics: sorting, palletizing, depalletizing
- Welding: arc guidance, integration with welding power sources and their protocols
- Electronics: precision soldering, SMD assembly, dispensing
- Food and beverage: unit and bulk packaging, placing, serving
- Medical: inspection, laboratory process automation, rehabilitation
- Film and media: repeatable camera moves, motion capture, image stabilisation
FR10-based kits: WELD welding kits and STACK MAX palletizing kits.
Services
- Programming and integration: robot programming, path planning, RoboDK configuration, system integration
- Remote support: diagnostics, reconfiguration, remote service support, online training
- On-site service by arrangement: commissioning, reconfiguration, diagnostics, service
The FR10 at work
Ask for an FR10 quotation
Price: €10,388 (IP54) or €11,668 (IP65), net, excl. VAT. Tell us what the robot should do and where you are — write to robotics@avena.pl, call +48 601 550 134 or use the contact page. We deliver across Europe — ask us for delivery terms to your country.
