CNC machine tending with a collaborative robot
A cobot loads and unloads your CNC machine tool: it picks a part from the pallet, communicates with the machine, places the part in the chuck jaws and puts the machined part down. The cell is operated through a graphical interface on a 15" touchscreen.
Request a quotation E-mail about CNC tending

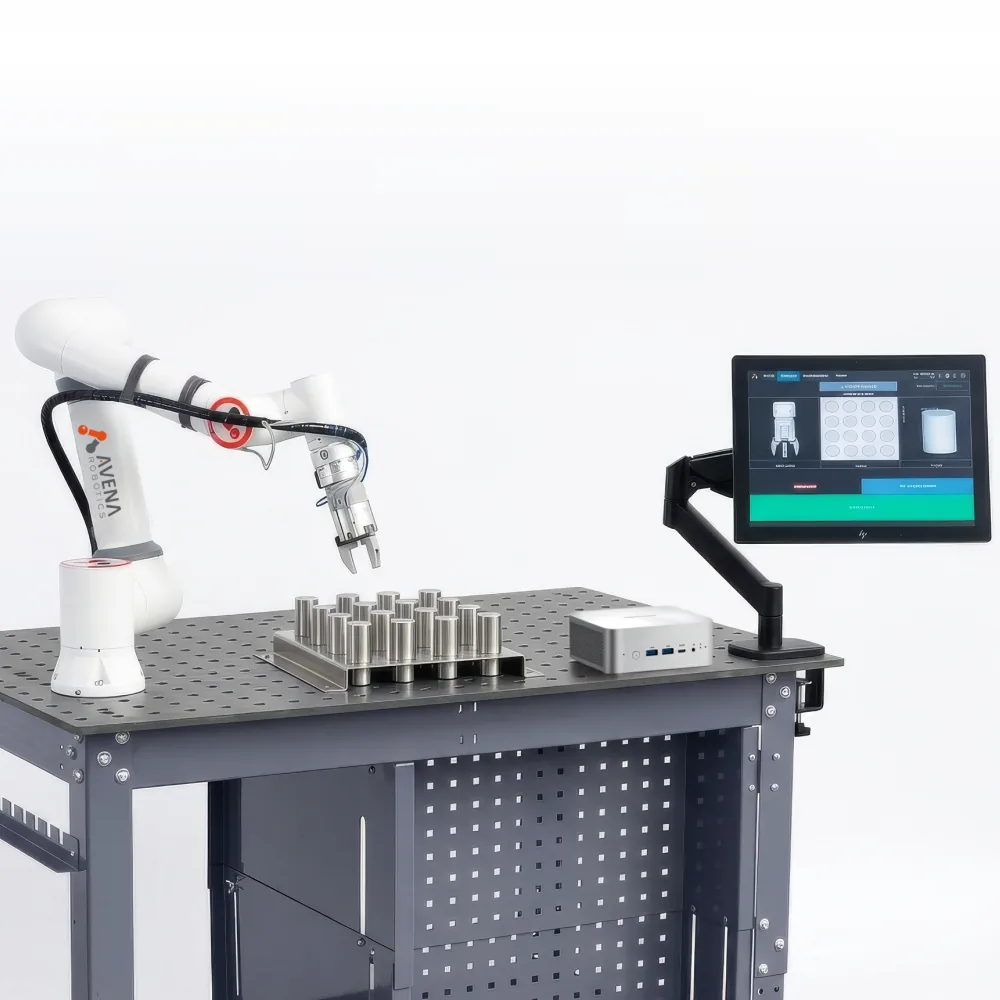

CNC FLEX kit with the FR5 cobot
- FAIRINO FR5 collaborative robot (922 mm reach, 5 kg payload)
- HMI control panel with a 15" touchscreen
- Solenoid valve controlling the opening actuator
- Universal 3-jaw pneumatic gripper
- Digital controller with 16/16 inputs/outputs
- Documentation and connection instructions
Software for CNC tending: an application for picking the part from the pallet, communicating with the machine, placing the part in the jaws and putting down the machined part, operated through a graphical interface on the 15" touchscreen.
Optional double gripper: adapter for two grippers (3D-printed or aluminium) and an additional 3-jaw gripper.
Prices from €6,645 (net, excl. VAT); the final price depends on the configuration. All kit prices in EUR: Kits.
See a cobot tending a CNC machine
FR5 at a glance
| FAIRINO FR5 | |
|---|---|
| Payload | 5 kg (max. 7 kg) |
| Reach | 922 mm |
| Repeatability | ±0.02 mm |
| Typical TCP speed | 1 m/s |
| Robot weight | 22 kg |
| Protection rating | IP54 |
| I/O | DI ×16, DO ×16, AI ×2, AO ×2 |
| Communication | Modbus, Profinet, Ethernet, I/O |
Full specification: FR5 cobot. For larger parts, see the FR10.
Send us your machine tending task
Tell us the machine, the parts and the batch sizes, and where you are — write to robotics@avena.pl, call +48 601 550 134 or use the contact page. We deliver across Europe — ask us for delivery terms to your country.
